Cartridge / Insertion Heaters
Product Description

Technical features :  The double-sided radiating will be instead of the traditional single radiating elements.



Description: Applying  for the air heating, Characteristic of high temperature and high power density , similar as the bolt heater, heaters for the aluminum mold, tube diameter will be ≥Φ 16mm.

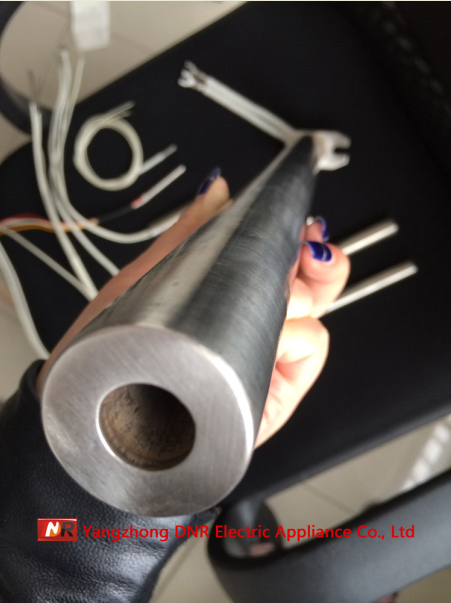

we take the process of  armoured and hollow  improving the traditional process of single heat radiating into double heat radiating, increasing the heat exchange capacity, reducing the heat saving to avoid the high working temperature damage the heating elements . What improve the life span more than 3 times than before.




 Sheath material: stainless steel ss304/316/321

 Heating resistance wire:Cr20Ni80
Working temperature: max 700°C
Diameter range (mm):2.6mm-30mm
Length range (mm):15mm-3000mm
Diameter tolerance: metric -0.02/-0.06mm
Length tolerance: ±1mm
Power tolerance: +5%,-10%
Rated voltage (110-220):max1.27 times
Insulation resistance: min5Ω
With(and voltage:1500v/min)
Designed life:3000 hours
Power density:
  -heating in mold: 45w/cm2(max)
-heating in water: 67w/cm2(max)
-heating in static air: 10w/cm2(max)
  -heating in flowing air: 18w/cm2(max)

Wire lead: fiberglass











Our Services

Supply the best solution for your request,OEM, technical supporting


Packaging & Shipping

 Delivery by express,air or sea.

Outside packing with carton or wooden case,inside with plastic bags


Company Information

  YANGZHONG DINGNUOER ELECTRIC APPLIANCE CO., LTD.(short for DNR next), founded in 2005, is a high-tech industry integrated the production and operation.Mainly engaged in the research and development of non-standard electric heating elements.specialize on the high power density, high temperature environment, ultrahigh life-span products.
