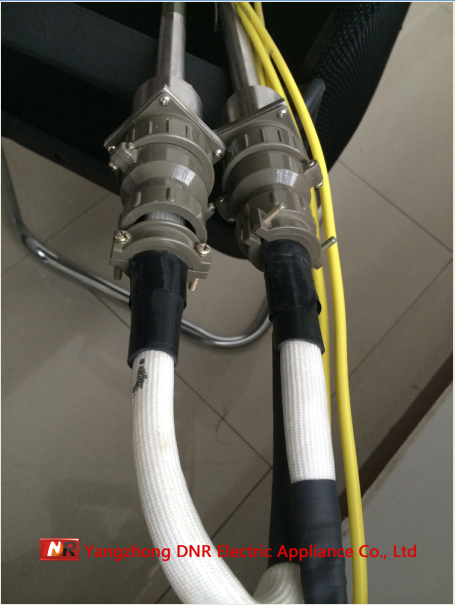

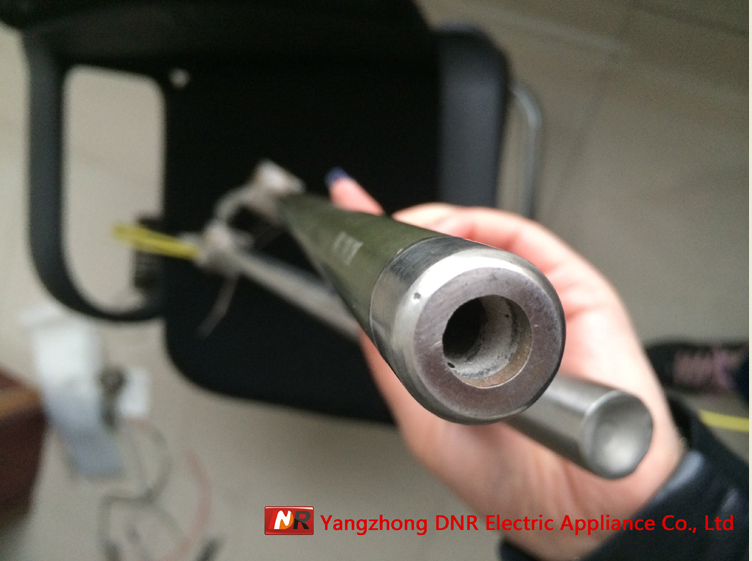

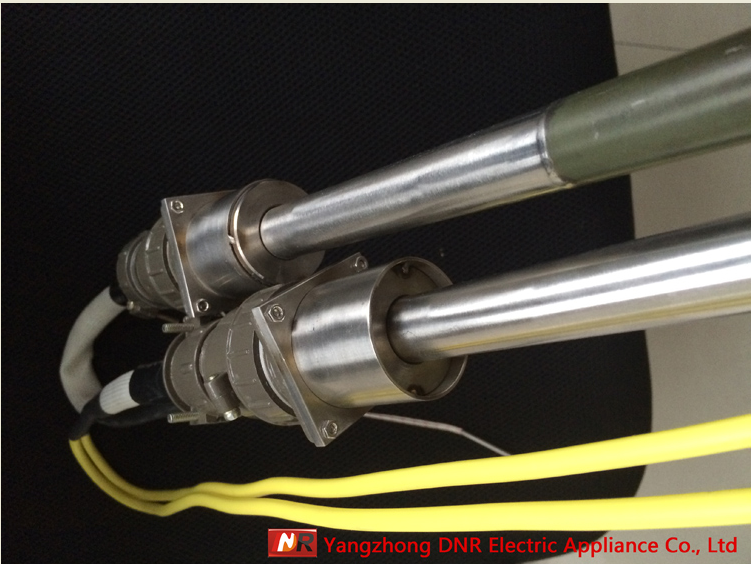

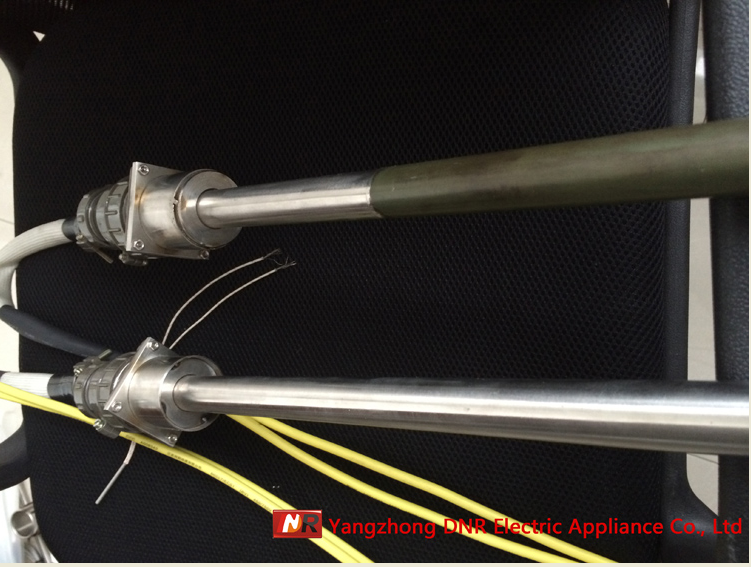

Cartridge / Insertion Heaters

Technical features
: high temperature resistance, longer life span, applicable to the environmental temperature


Description: two types  1)95 alumina ceramic sheath ,

 the heating core is made from RE(rare earth), High temperature reached 1400 ℃


2)Using the silicon molybdenum ceramic, filling with ceramic powder and sintering them under the high temperature, tube diameter Φ 10mmwhat can also be used in hollow tube with double radiating surface process, this process can make the  elements long term working under the temperature 1400 with safety condition.




 Sheath material: stainless steel ss304/316/321

 Heating resistance wire:Cr20Ni80
Working temperature: max 700°C
Diameter range (mm):2.6mm-30mm
Length range (mm):15mm-3000mm
Diameter tolerance: metric -0.02/-0.06mm
Length tolerance: ±1mm
Power tolerance: +5%,-10%
Rated voltage (110-220):max1.27 times
Insulation resistance: min5Ω
With(and voltage:1500v/min)
Designed life:3000 hours
Power density:
  -heating in mold: 45w/cm2(max)
-heating in water: 67w/cm2(max)
-heating in static air: 10w/cm2(max)
  -heating in flowing air: 18w/cm2(max)

Wire lead: fiberglass











Our Services

Supply the best solution for your request,OEM, technical supporting


Packaging & Shipping

 Delivery by express,air or sea.

Outside packing with carton or wooden case,inside with plastic bags
