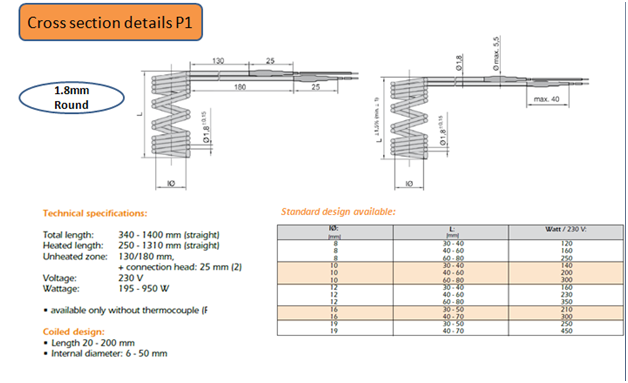

Standard Cross Section (available):

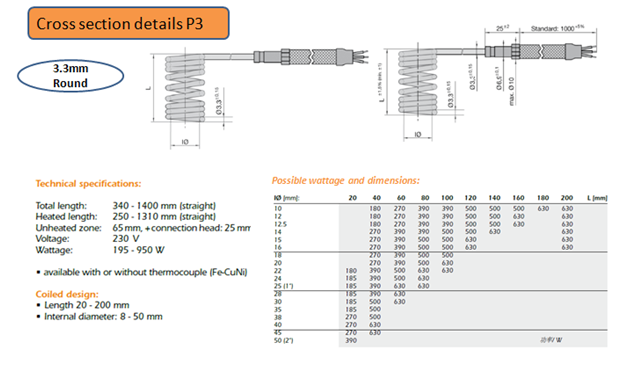

Round(dia):    3mm,3.3mm,3.5mm

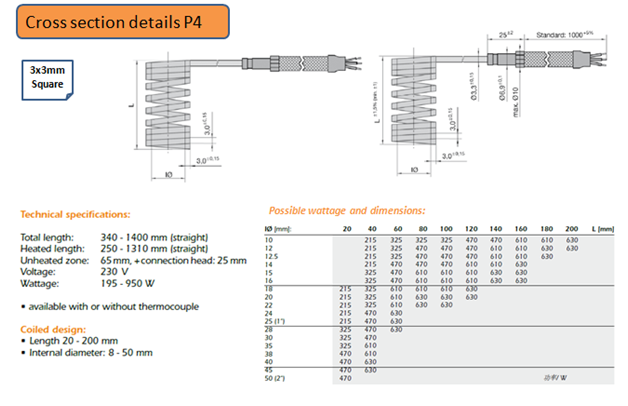

Square        :    3mmX3mm,3.3mmX3.3mm,3.5mmX3.5mm

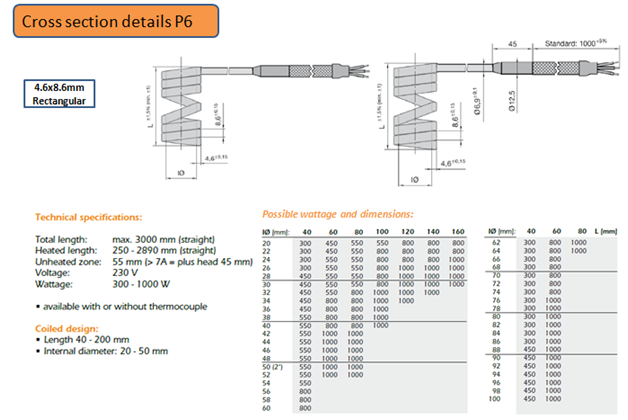

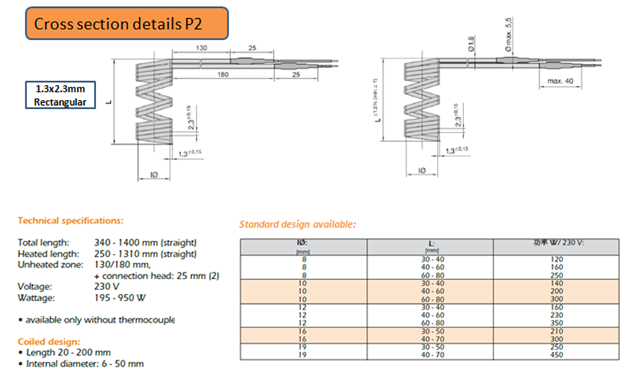

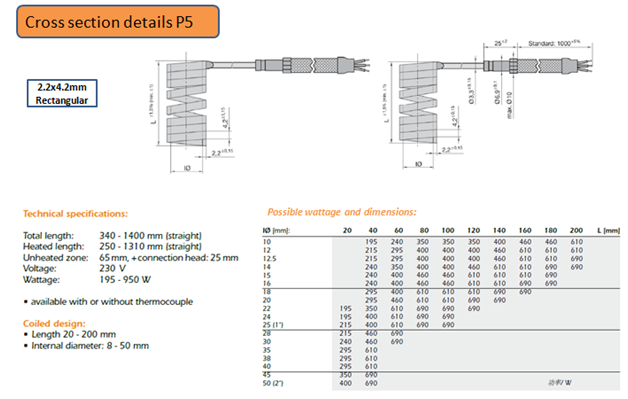

Rectangular:   2mmX4mm,4.2mmX2.4mm,1.3mmX2.3mm,
4.2mmX2.2mm
Watt Density: 6.5W/CM2(not including cool zone).

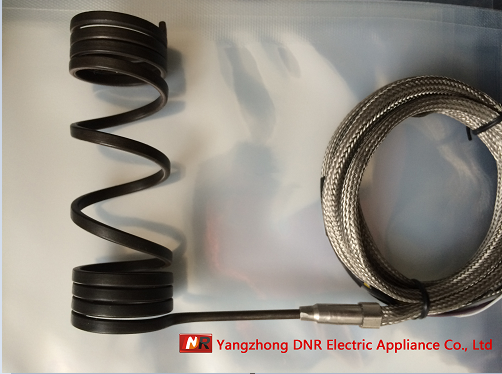

Wire Leads: 1000mm Teflon wire leads with SS.braided sleeve
Heating Resistance Wire:Cr20Ni80
Max.Tempreture:650℃
Other functions: built in thermocouple K/J type as customer’s requirement

Supply the best solution for your request,OEM, technical supporting

 Delivery by express,air or sea.

Outside packing with carton or wooden case,inside with plastic bags

  YANGZHONG DINGNUOER ELECTRIC APPLIANCE CO., LTD.(short for DNR next), founded in 2005, is a high-tech industry integrated the production and operation.Mainly engaged in the research and development of non-standard electric heating elements.specialize on the high power density, high temperature environment, ultrahigh life-span products.
